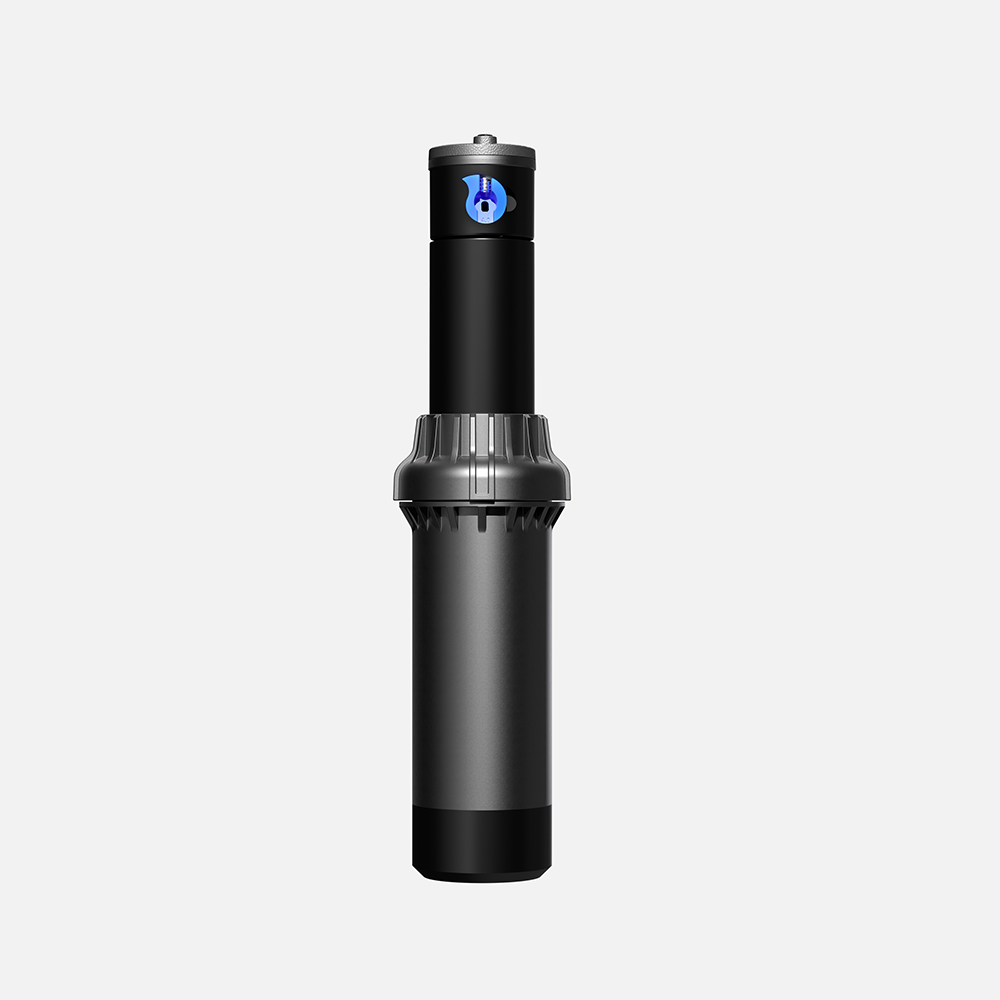

HF02-04 Gear Drive Sprinkler

HF02-04 Gear Drive Sprinkler - Image 2

HF02-04 Gear Drive Sprinkler - Image 3

HF02-04 Gear Drive Sprinkler - Image 4

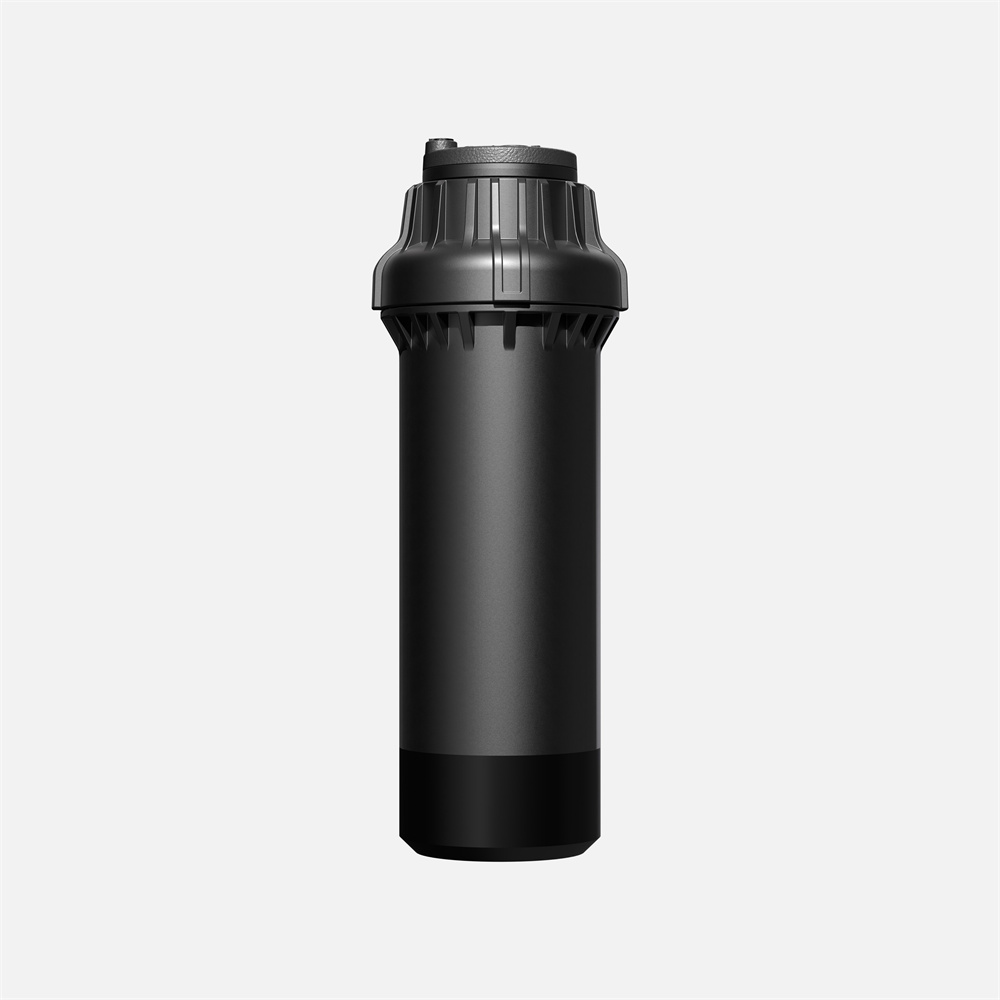

HF02-04 Gear Drive Sprinkler

Brand: INOVATO

Product Model: HF02

Description: HF02-04, 4″, adjustable from 60° to 360°, ¾” inlet, eight standard and four low-angle nozzles included

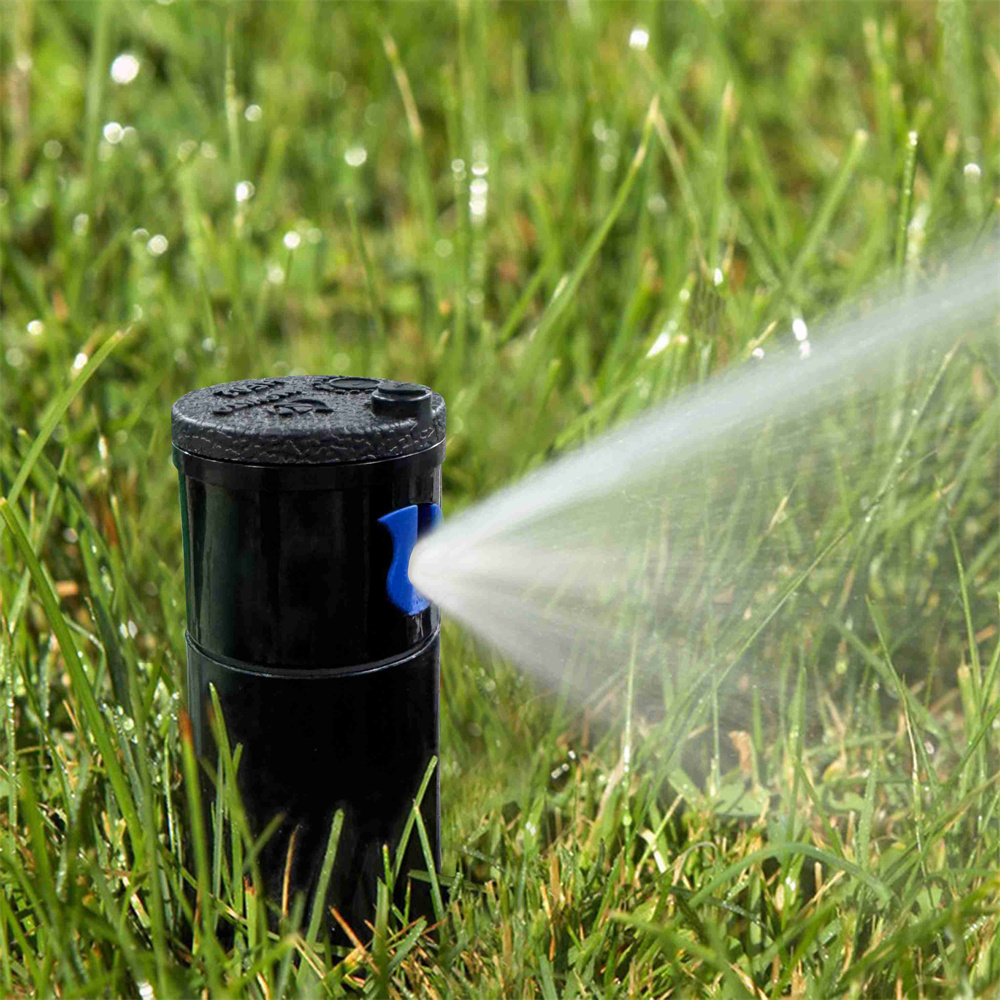

Applications: It is applied to turfgrass, shrubs, garden, etc

Category: Inovato

Description

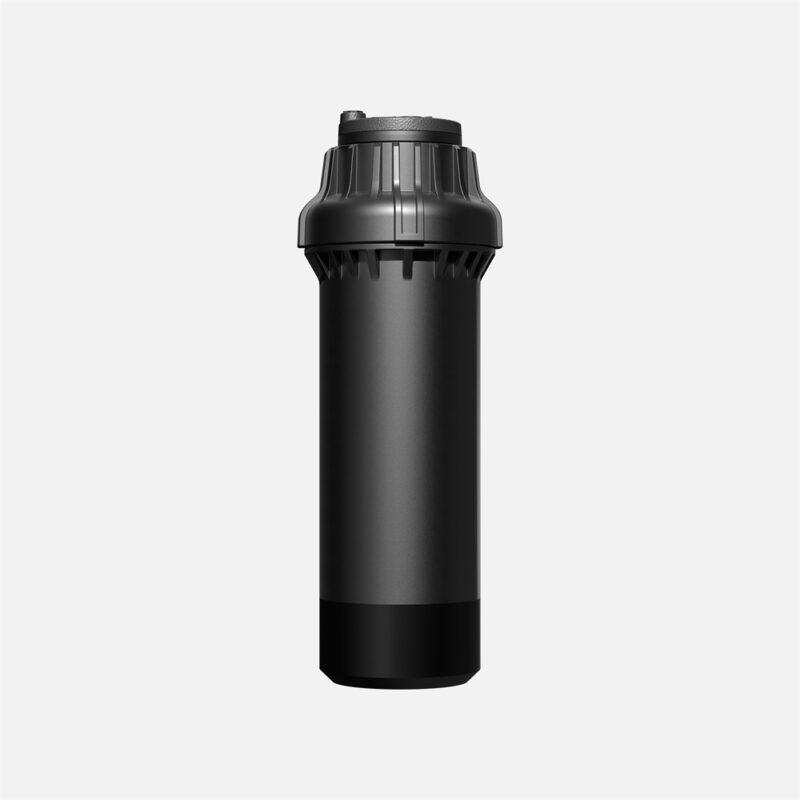

Dimensions

Overall height: 21cm

Exposed diameter: 4.5cm

Inlet size: 3/4″female

Features

Models: 10cm

Arc setting: 60°~360°

Factory-installed rubber cover

Through-the-top arc adjustment

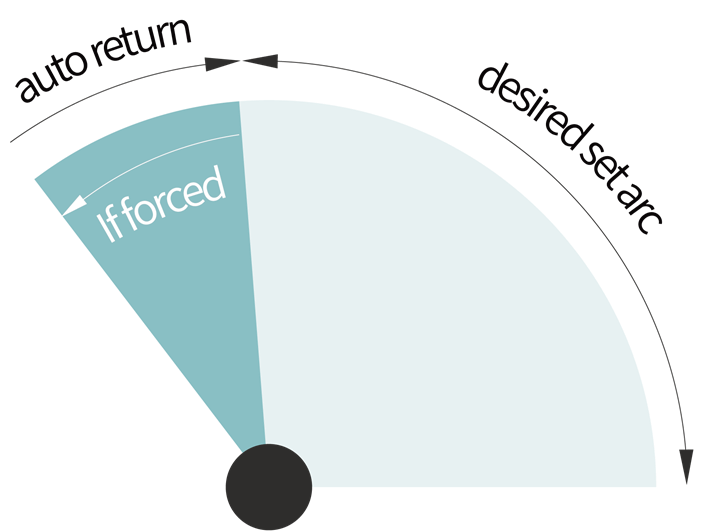

Quick check arc mechanism

Water lubricated gear-drive

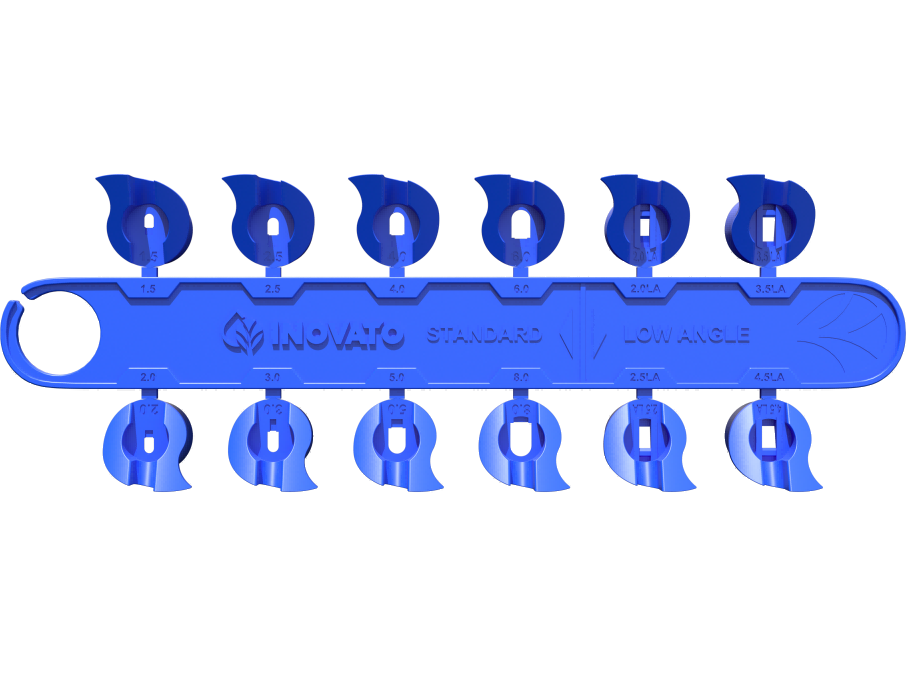

Nozzle choice: 12

Nozzle range: 1.5~8.0 blue, 2.0~4.5 low angle blue

Warranty: 2 years
■ standard/low-angle

Operating Specifications

Radius: 4.9~14.0m

Flow: 0.07~3.23m3/hr; 1.2~53.8l/min

Precipitation rate: 10mm/hr approx

Trajectory: Standard = 25° Low angle = 13°

Recommended working pressure: 1.7~4.5bar; 170~450kPa

Operating working pressure: 1.4~7bar; 140~700kPa

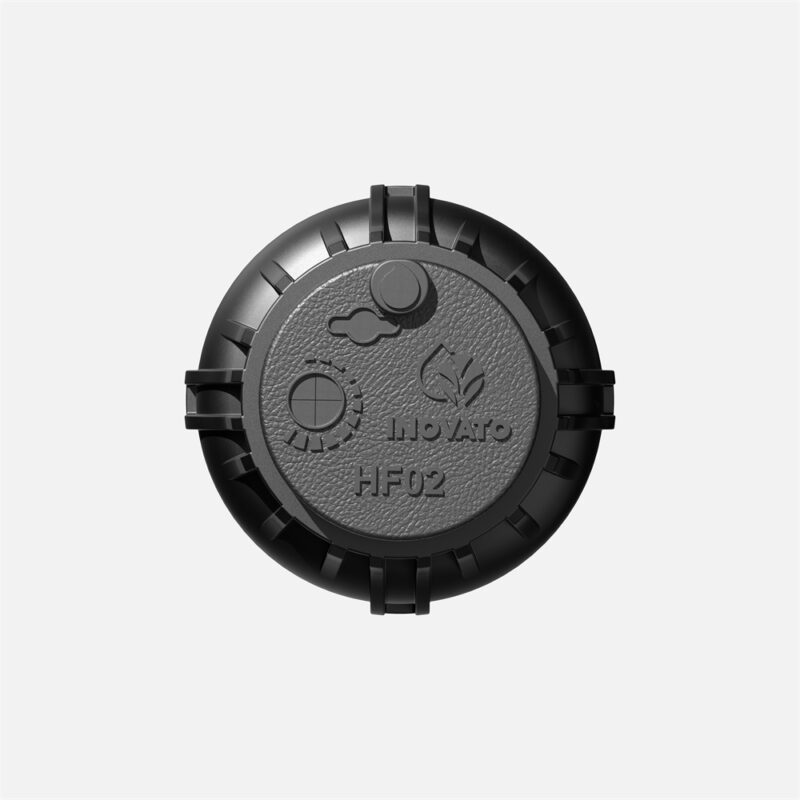

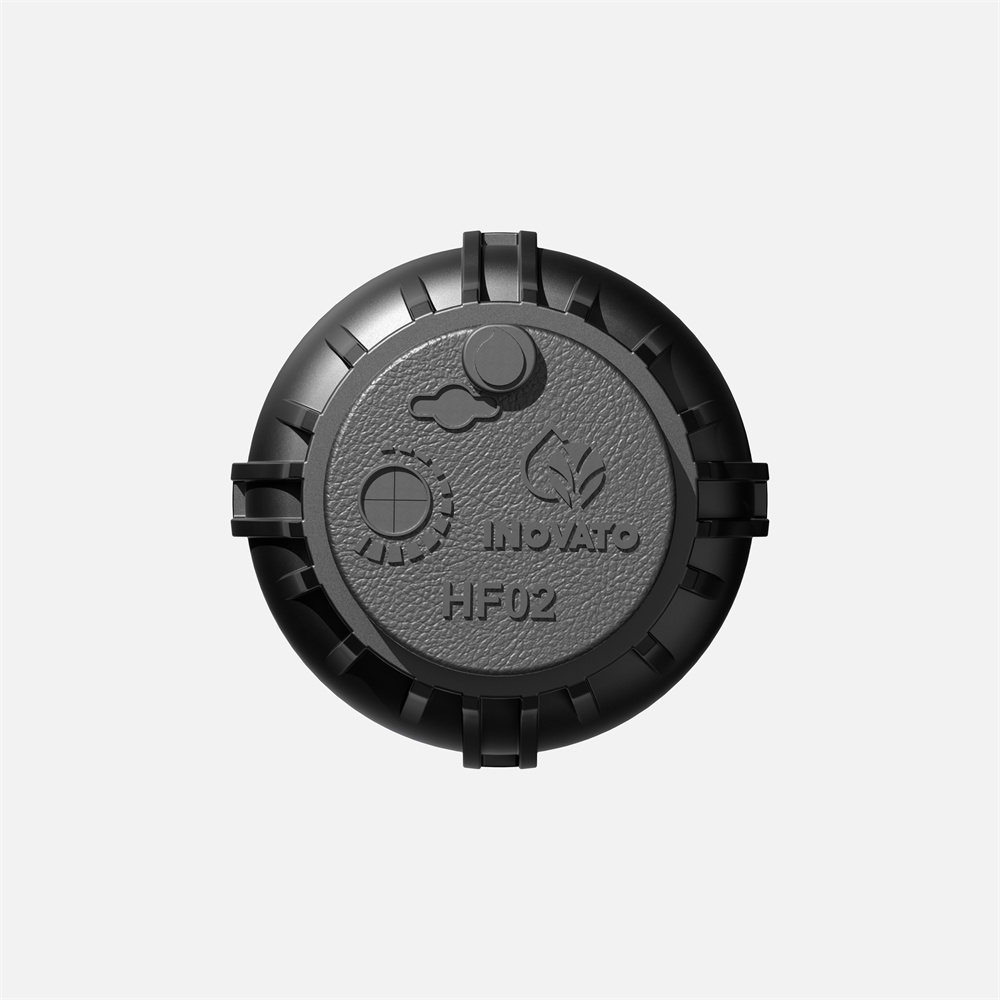

Introduction To End Cap Hole Position

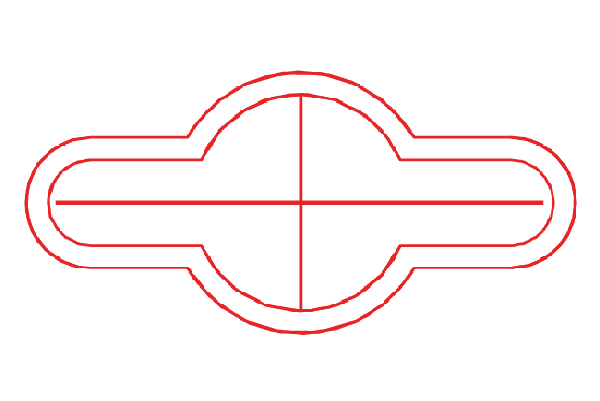

Lift

Use the plastic head to the side lift hole, turn around and lift the pop-up head. Please lift and release slowly. Caution not to hurt yourself.

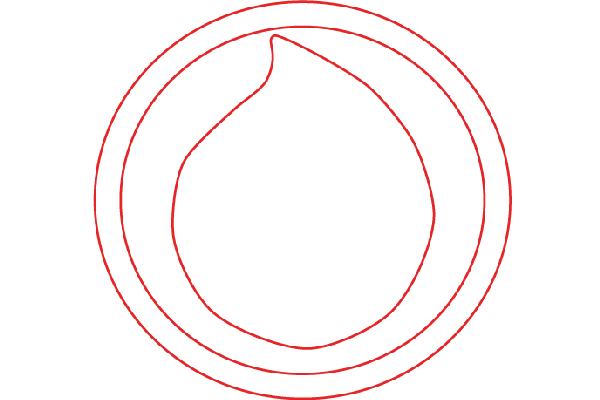

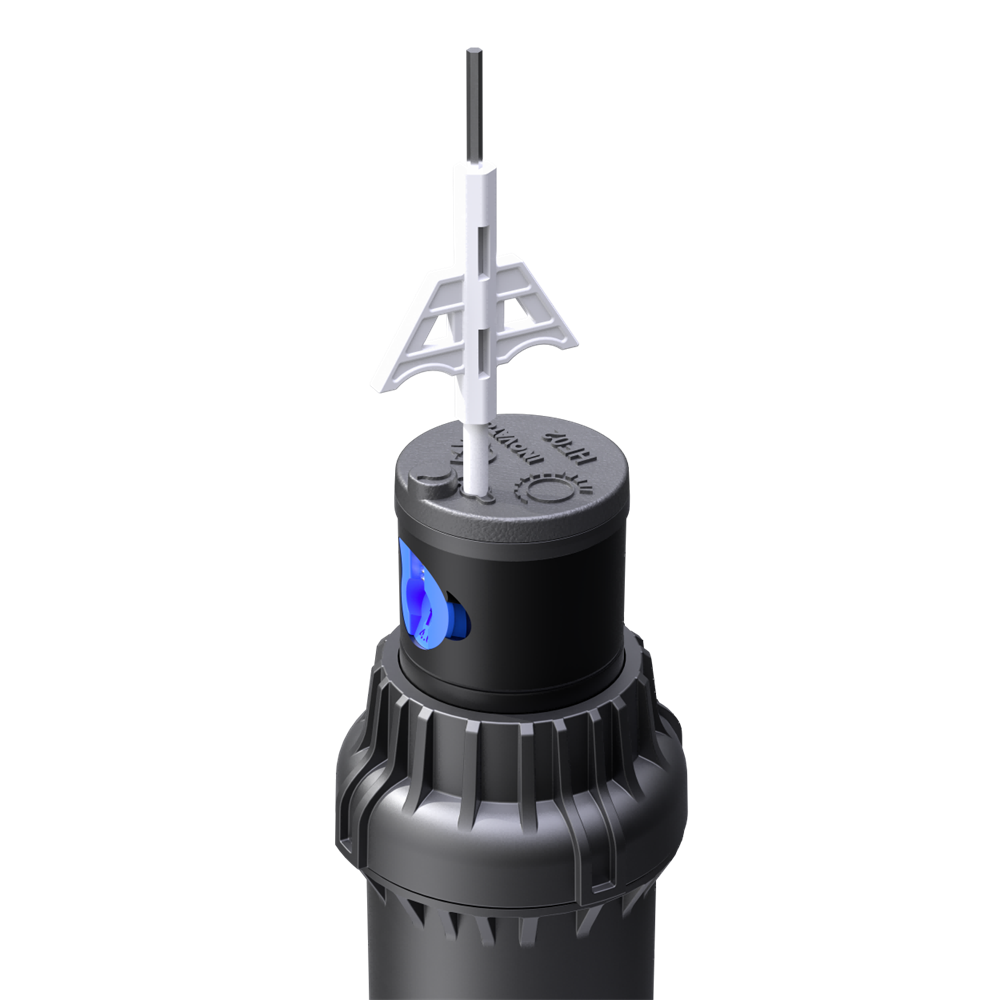

Nozzle Remove

Use the steel head to the nozzle-remove hole, anti-clockwise to loose the screw and remove the nozzle. Pick a replacement nozzle and clockwise the screw. Please don’t over-rotate it. Caution not to scratch the nozzle.

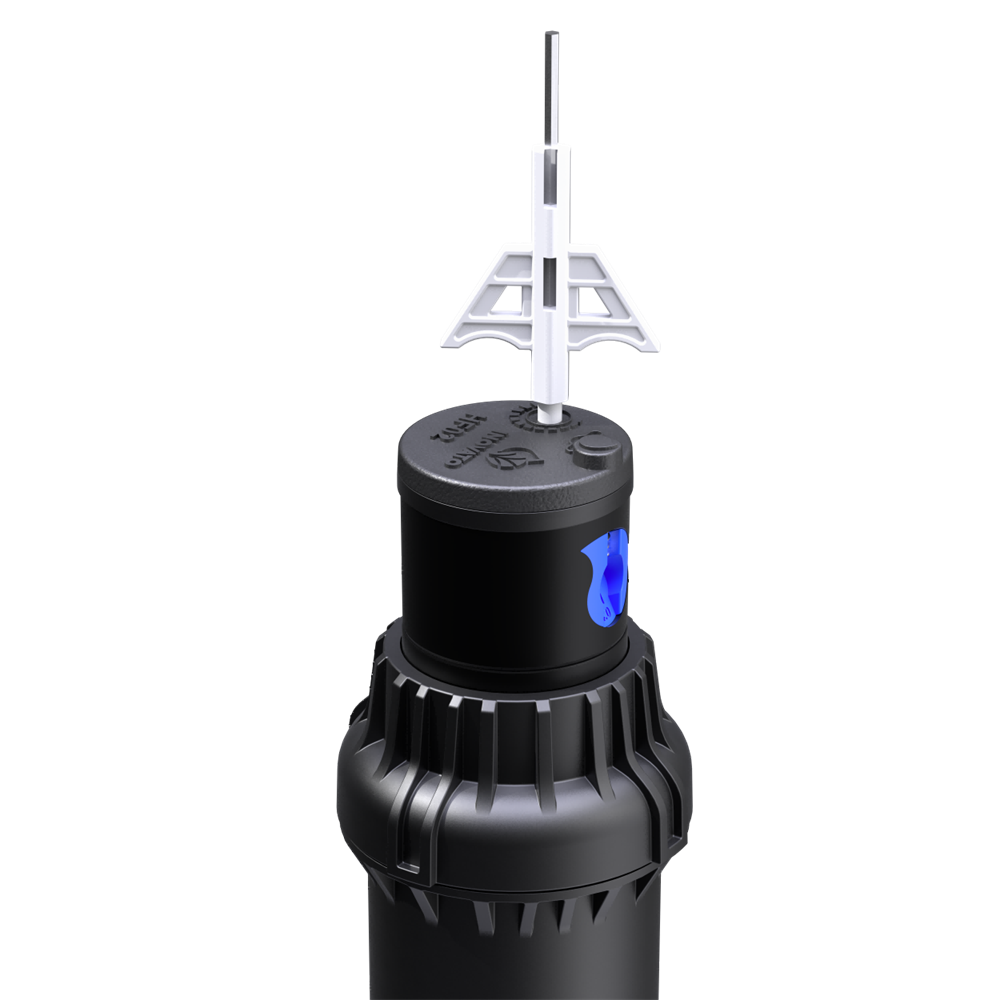

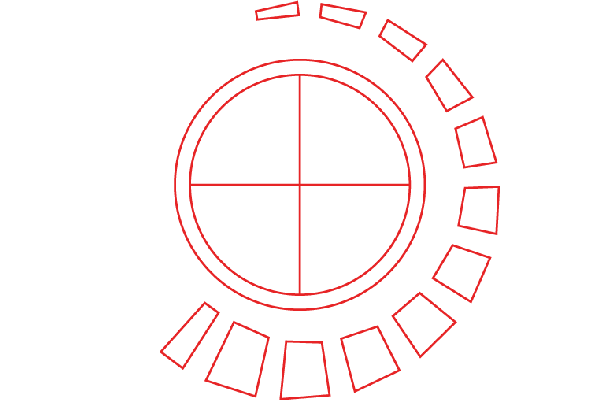

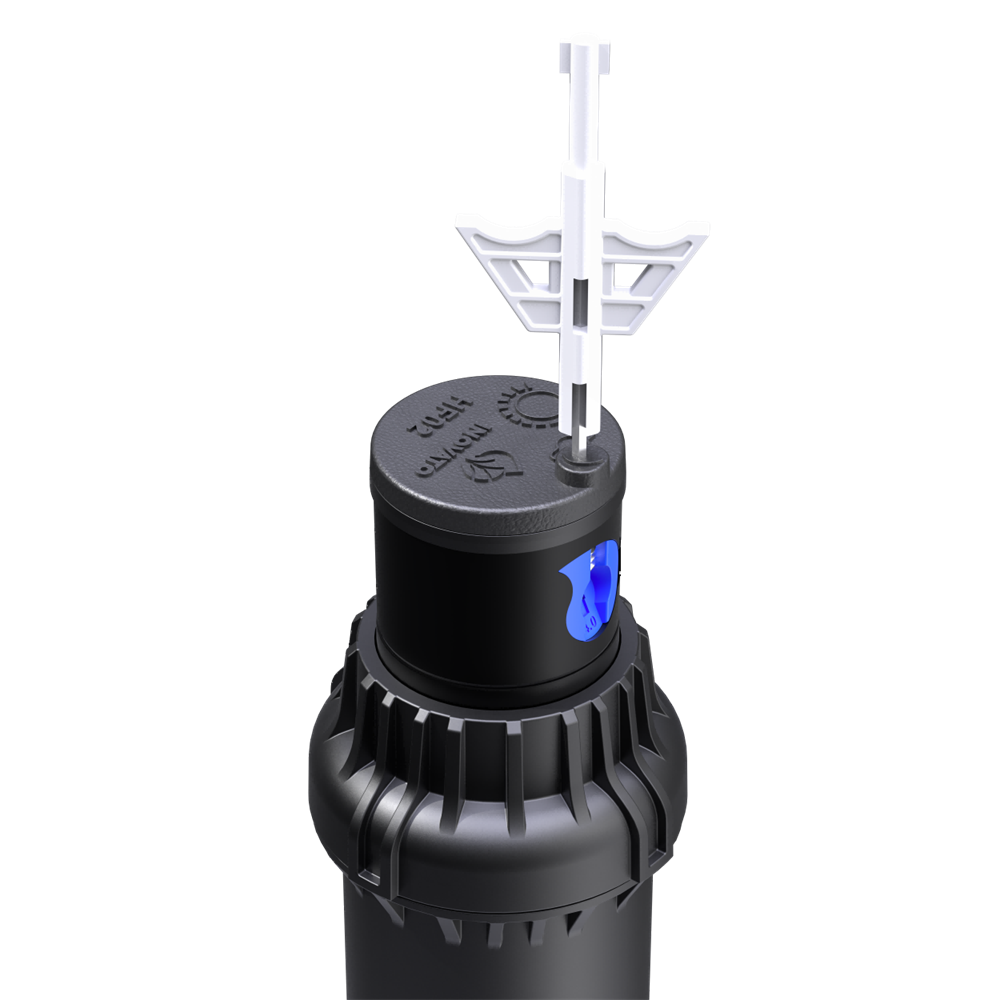

Angle Adjustment

Use the plastic head to the angle-adjust hole, clockwise to magnified the angle, anticlockwise to reduce the angle. Please rotate slowly, check the angle each half circle. Caution not to over-rotate it.

Detail Display
