SF04 Sprinklers & Accessories
SF04 Sprinklers & Accessories - Image 2
SF04 Sprinklers & Accessories - Image 3
View details

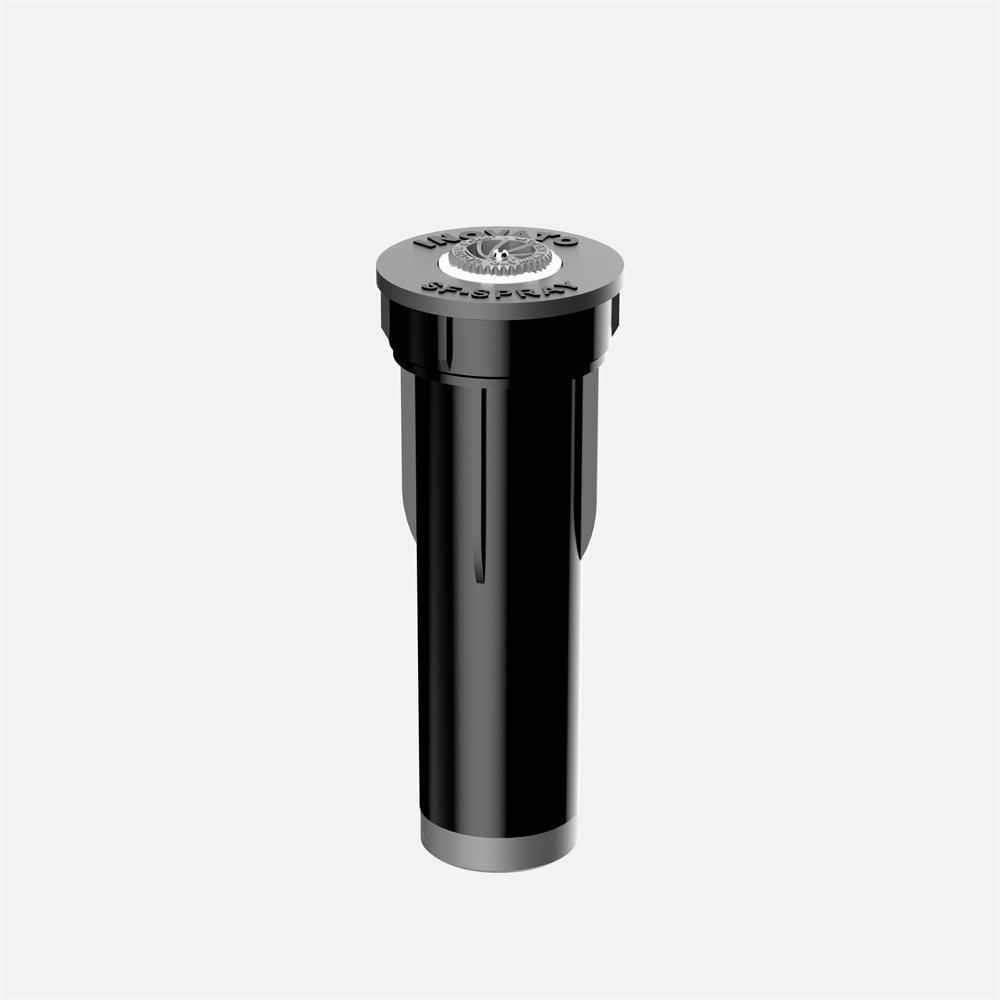

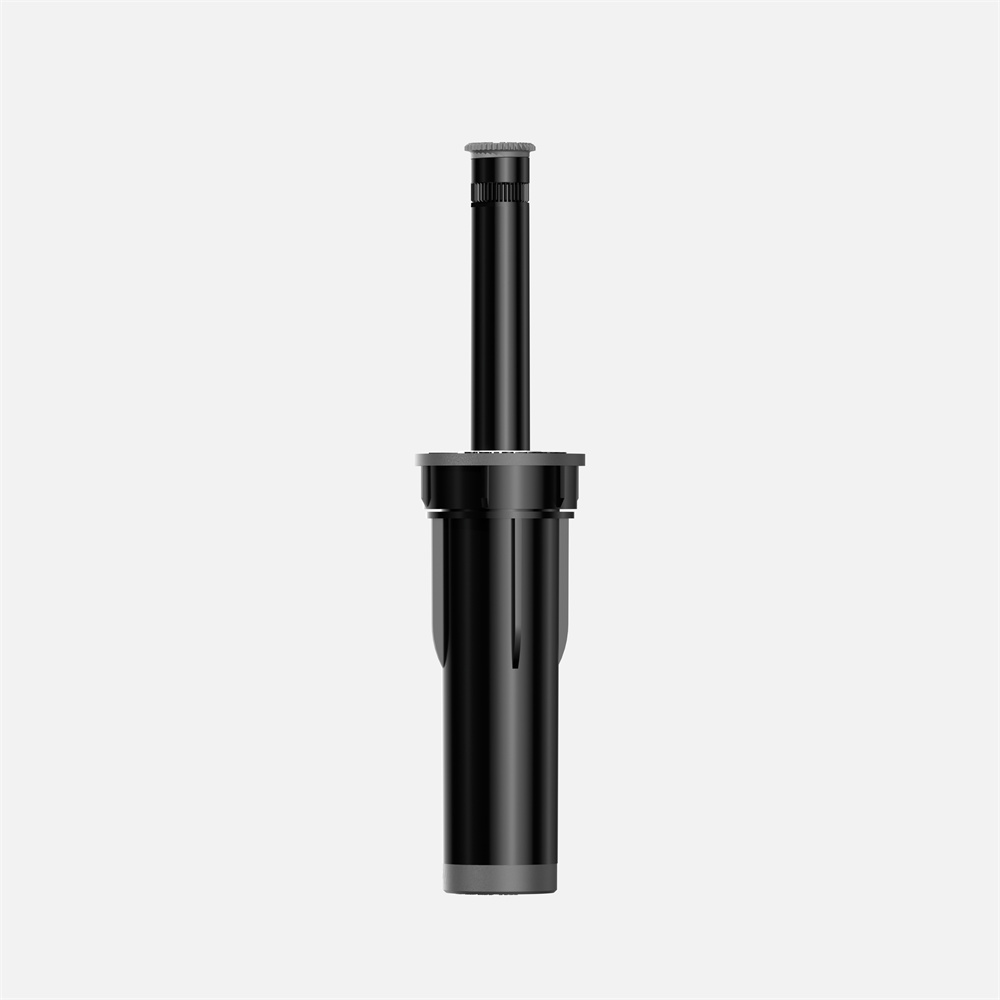

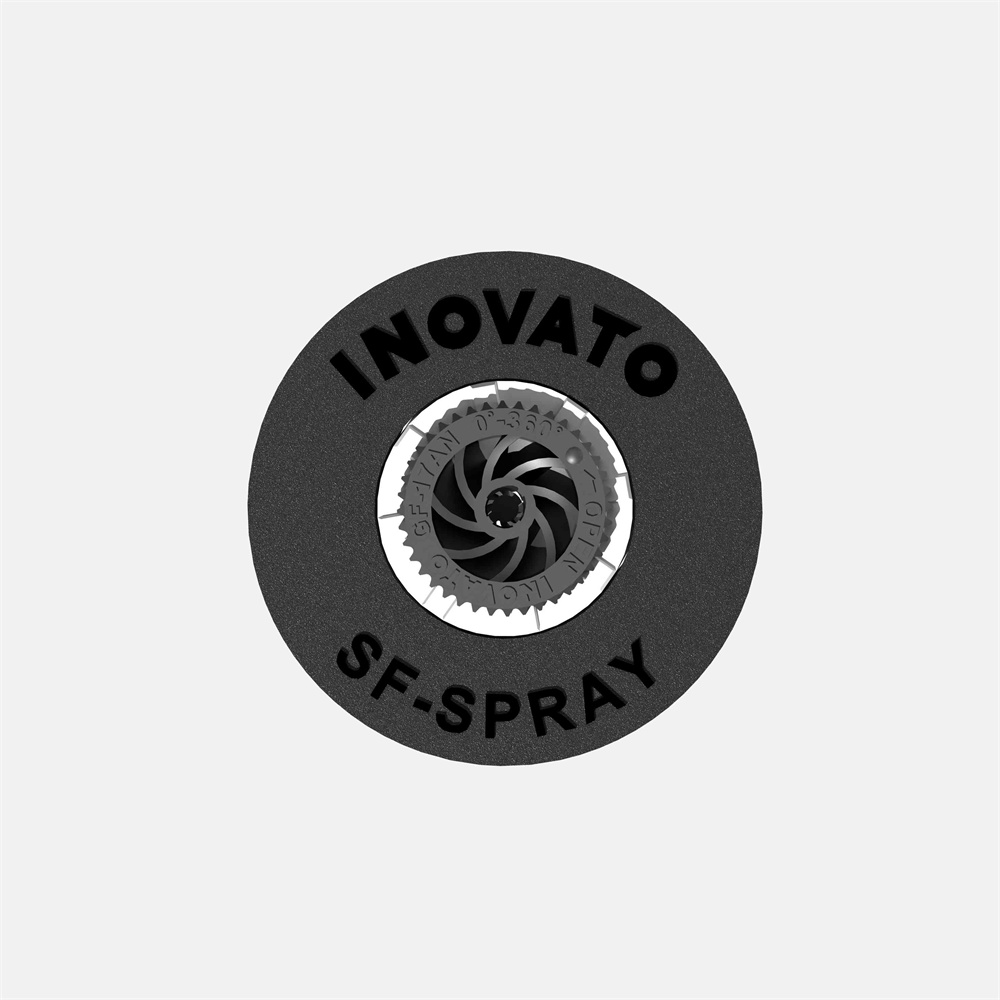

SF04 Sprinklers & Accessories

Brand: INOVATO

Product Model: SF04

Description: SF Sprinkler Body, 4″ pop-up with 1/2″inlet, accepts female thread nozzles

Applications: It is applied to turfgrass, shrubs, garden, etc

Category:

  • Dimensions

    Overall height: 15.5cm
    Pop up height: 10cm
    Exprosure diameter: 5.7cm
    Inlet size: 1/2″female thread

Features

Stronger material makes the body for years of reliable performance
Constructed of durable materials including corrosion resistant stainless steel
Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
Male threaded riser to accept all lNOVATO female nozzles

  • Operating Specifications

    Recommended pressure range: 1.0~7.0 bar
    Optimum working pressure: 2.1 bar
    Connection:1/2″female thread

Factory Installed Options

FN nozzles, RF nozzles
Flush plug
Reclaimed water lD cap
Drain check valve: 7.5cm, 10cm, 15cm, 30cm models (up to 3m of elevation)
Pressure regulated: 10cm, 15cm, 30cm
