YT 210-1.5" and 2" Valve
YT 210-1.5" and 2" Valve - Image 2
View details

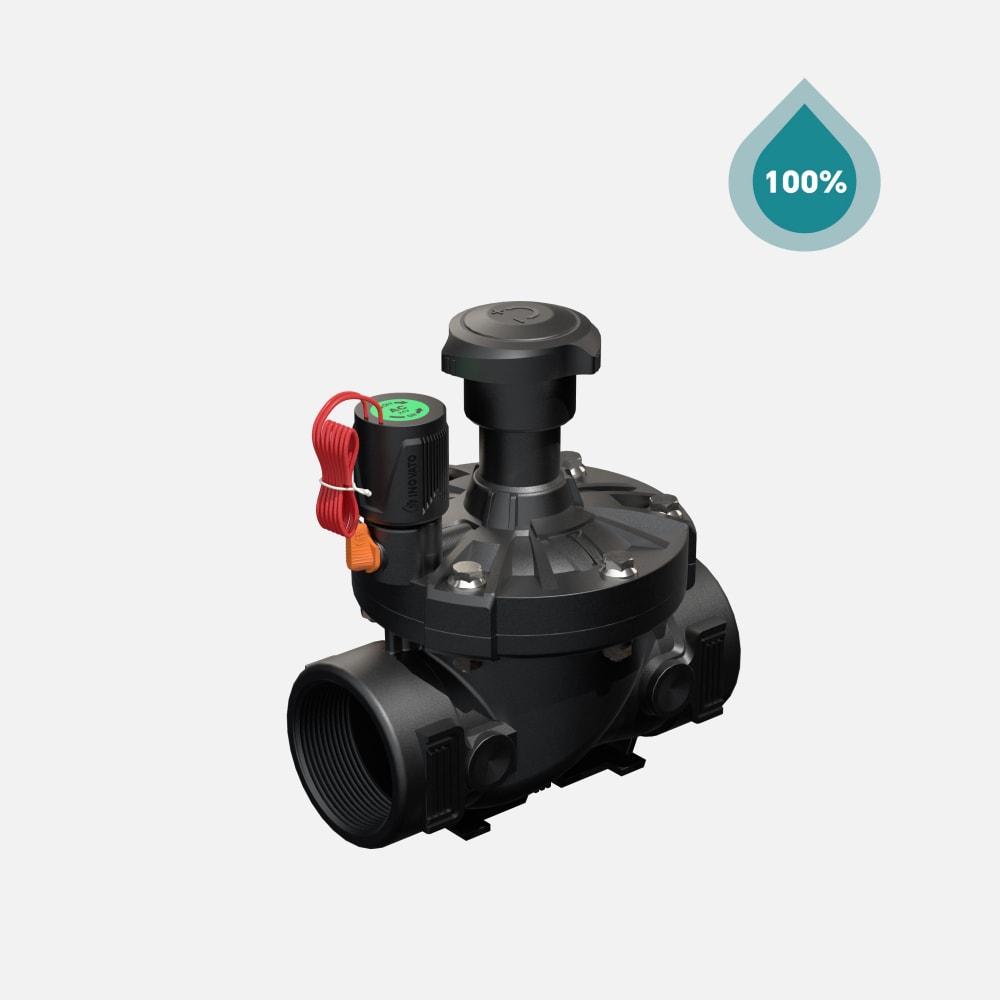

YT 210-1.5″ and 2″ Valve

Brand: INOVATO

Product Model: YT210-1-1/2”,YT210-2”

Size: 1-1/2″ and 2”valve with female thread inlet / outlet, with flow control

Description: The INOVATO solenoid valve is a hydraulically driven diaphragm type hydraulic control valve. It can be turned on and off with electrical signal

Category:

Models

YT210-1-1/2”Valve = Inlet & Outlet size: 1-1/2inch, DN40
YT210-2”Valve = Inlet & Outlet size: 2inch, DN50

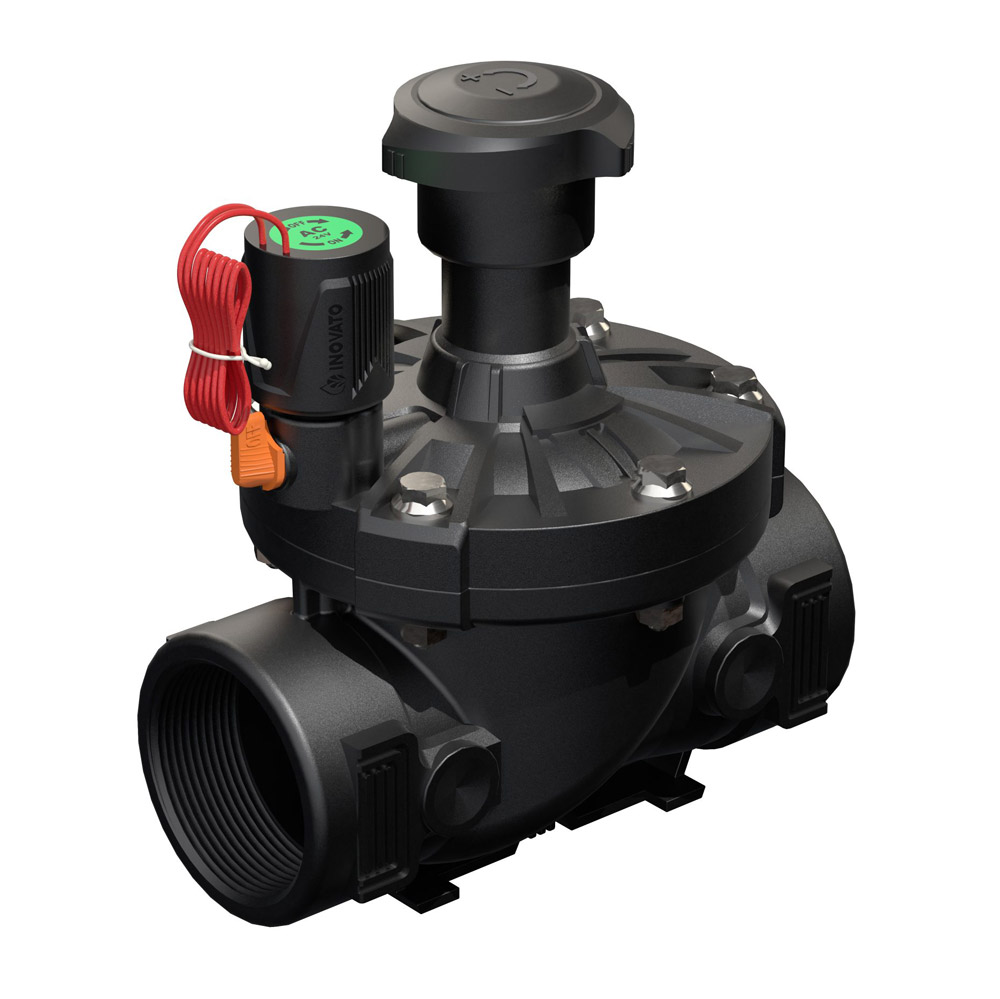

  • YT210-1-½“

    YT210-1-1.5″ Valve

    Female Thread, NPT/BSPT/Flanged
    L*W*H: 165*129.4*188.6mm
  • YT210-2“

    YT210-2″ Valve

    Female Thread, NPT/BSPT/Flanged
    L*W*H: 170.2*129.4*193.95mm

Advanced Features

Flow control: none
SNL-ADJ capable

Factory-Installed Options

LS: Valve without solenoid
DC: DC-Latching Solenoid for battery-operated controllers

Solenoid Specifications

Solenoid Coil: AC Solenoid, DC-Latching Solenoid(Pulse)
Mechanical Solenoid:
AC/DC Associated Mechanical Solenoid
DC-Latching Mechanical Solenoid(Pulse)

Solenoid Specifications

Solenoid Coil: AC Solenoid, DC-Latching Solenoid(Pulse)
Mechanical Solenoid:
AC/DC Associated Mechanical Solenoid
DC-Latching Mechanical Solenoid(Pulse)

Typical Applications

Residential
Pressure regulation
Low-pressure systems
